FOTILE JQG7501 30 Inch Kitchen Range Hood – WhisPower Dual Motors, Auto Shield

Description

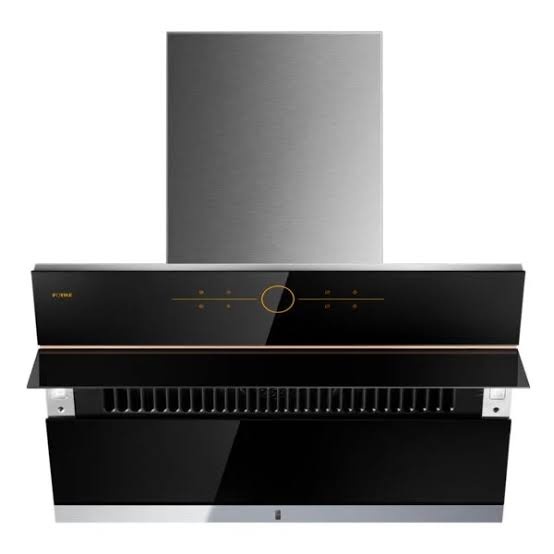

FOTILE JQG7501 30 Inch Kitchen Range Hood

The FOTILE JQG7501 Kitchen Range Hood is a premium side-draft range hood designed to capture smoke and grease close to the cooking surface before fumes can spread through the kitchen.

The exact JQG7501 combines FOTILE’s Venturi airflow effect, Golden Collection Zone, centrifugal WhisPower motor system, 90° automatic smoke baffle, touch controls and wide fume-capture design.

30-Inch Side-Draft Range Hood

The FOTILE JQG7501 belongs to FOTILE’s Classic side-draft range hood platform and measures approximately 30 inches wide.

Its low-positioned smoke inlet is designed to capture cooking fumes closer to the source compared with traditional overhead extraction designs.

Venturi Enhanced Airflow

FOTILE Pakistan highlights the Venturi effect as one of the key technologies of the JQG7501.

The airflow design accelerates extraction through the inlet, helping the hood provide effective smoke capture across the cooking area.

Golden Collection Zone

The JQG7501 incorporates FOTILE’s Golden Collection Zone.

This extraction zone is engineered to capture rising smoke and airborne grease efficiently before they escape into the surrounding kitchen.

Centrifugal WhisPower Motors

FOTILE Pakistan identifies the JQG7501 with centrifugal WhisPower motors.

The motor system is designed to increase air speed and extraction power while supporting FOTILE’s side-draft smoke-capture design.

Dual AC Motor System

Official detailed FOTILE documentation for the exact JQG7501 specifies dual AC motors with a combined motor rating of approximately 256W.

The dual-motor configuration supports strong and consistent extraction across the hood’s wide inlet area.

90° Auto-Open Capture Shield

One of the defining features of the JQG7501 is its 90-degree automatic opening smoke shield.

The capture shield opens when the hood is operating, helping guide cooking fumes toward the extraction inlet while reducing smoke spread.

Extra-Wide Fume Inlet

The JQG7501 uses an extra-wide fume inlet designed to cover multiple burners.

Its wide capture area helps maintain more consistent suction across the cooktop rather than concentrating extraction at only one point.

Even Suction Pressure

FOTILE Pakistan specifically highlights even suction pressure at different angles.

This design helps capture smoke across a broader cooking area and improves performance when several burners are being used simultaneously.

Up to 400Pa Static Pressure

Official exact-model FOTILE technical documentation lists up to 400Pa maximum static pressure for the JQG7501 platform.

This helps maintain extraction through connected ductwork where some airflow resistance may be present.

3 Fan Speeds

The detailed exact-model specification provides three fan speed settings.

Users can select a lower setting for lighter cooking and increase extraction when frying or cooking foods that produce heavier smoke.

Touch Control

The FOTILE JQG7501 uses touch controls.

The control panel gives convenient access to fan-speed, lighting, delay and other operating functions while maintaining a clean modern appearance.

2-Minute Delay Shutoff

The JQG7501 includes a 2-minute delay shutoff function.

After cooking, the hood can continue operating briefly to remove residual smoke and odors before automatically switching off.

Screen Lock

The exact JQG7501 includes a screen-lock function.

This is particularly useful during cleaning because it helps prevent accidental operation while the control panel is being wiped.

95.1% Oil Filtration

Official exact-model technical documentation lists approximately 95.1% oil filtration efficiency.

This helps reduce airborne grease and minimizes buildup on surrounding cabinets, walls and kitchen surfaces.

98.63% Odor Elimination

The JQG7501 is also listed with approximately 98.63% odor elimination efficiency under the detailed official regional specification.

This helps reduce lingering cooking smells after frying, grilling and other high-intensity cooking.

Removable Oil Filter

The hood uses a removable oil filter designed for easier maintenance.

The filtration system works with the capture shield and side-draft airflow arrangement to separate grease from extracted air.

Oversized Oil Cup

The exact 30-inch JQG7501 configuration includes one oversized oil cup.

The oil cup collects separated grease and helps simplify routine maintenance.

Dual LED Lighting

The exact model includes 2 × 3W LED lights.

These provide bright illumination over the cooktop and improve visibility during meal preparation.

Low-Noise Operation

Detailed FOTILE documentation lists operating noise at approximately:

• Low Speed: 39dB
• Medium Speed: 49.2dB
• High Speed: 54.3dB

Noise levels can vary according to installation, duct configuration and regional testing standards.

Under-Cabinet or Wall-Mount Installation

The JQG7501 supports under-cabinet or wall-mounted installation.

Its side-draft configuration can therefore integrate into different kitchen layouts depending on cabinetry and ventilation design.

Vertical Ducting

The official detailed specification uses vertical ducting with a 6-inch round outlet.

Correct duct sizing and professional installation are important for maintaining extraction performance.

Compact 30-Inch Dimensions

Official exact-model documentation gives dimensions of approximately:

29 7/8″ W × 18 7/16″ D × 17 7/16″ H

This makes the JQG7501 a compact premium choice for kitchens requiring a 30-inch range hood rather than a wider 90cm unit.

For buyers searching for the FOTILE JQG7501 price in Pakistan, this model combines side-draft smoke capture, dual WhisPower motors, automatic smoke shielding, touch control and high grease-filtration performance in a premium kitchen hood.
